Purpose

Defines a browser on one or several server.

Class

bBrowser

Properties

AlphaBlendRatio(Access / Assign)
AutoAppend(Access / Assign)
AutoCaptionHeight(Access / Assign)
AutoClose(Access / Assign)
AutoEdit(Access / Assign)
AutoFooterHeight(Access / Assign)
AutoRefreshTime(Access / Assign)
AutoSkip(Access / Assign)
AutoTitleHeight(Access / Assign)
AutoWidthColumn(Access / Assign)
CaptionArea(Access)
CaptionHeight(Access / Assign)
CaptionView(Access / Assign)
CellGroup(Access)
Collection(Access / Assign)
ColorCondition(Access)
ColumnCount(Access)
ColumnHighlightStyle(Access / Assign)
ColumnList(Access)
ColumnOpenCount(Access)
ColumnOpenList(Access)
ColumnVariableHeightCount(Access)
ColumnVariableHeightList(Access)
ContextMenuMode(Access / Assign)
CurrentBackground(Access / Assign)
CurrentColumn(Access)
CurrentMode(Access / Assign)
CurrentForeground(Access / Assign)
CurrentRecNo(Access)
CurrentRow(Access)
CurrentRowBackground(Access / Assign)
CurrentRowForeground(Access / Assign)
DataArea(Access)
DataFont(Access / Assign)
DataView(Access / Assign)
DeletedForeground(Access / Assign)
DisabledBackground(Access / Assign)
DisabledForeground(Access / Assign)
DragDropMode(Access / Assign)
DynamicDataArea(Access)
Editable(Access / Assign)
EditCell(Access)
EditCloseFlags(Access / Assign)
EditCondition(Access)
EditControl(Access)
EditStartFlags(Access / Assign)
EoFRecNo(Access)
FieldChangeMode(Access / Assign)
FirstRecNo(Access)
FirstVisibleColumn(Access)
FirstVisibleColumnOffset(Access)
FirstVisibleRecNo(Access / Assign)
FirstVisibleRowNo(Access)
FocusView(Access / Assign)
Font(Access / Assign)
FontCondition(Access)
FooterArea(Access)
FooterHeight(Access / Assign)
FooterView(Access / Assign)
Freeze(Access / Assign
Grid(Access / Assign)
GridCondition(Access)
GridInEmptyArea(Access / Assign)
HorizontalScrollbarMode(Access / Assign)
InactiveSelectedBackground(Access / Assign)
InactiveSelectedForeground(Access / Assign)
InfoView(Access / Assign)
KeyCommand(Access)
LastRecNo(Access)
LastVisibleColumn(Access)
LastVisibleRecNo(Access)
LastVisibleRowNo(Access)
ProcessState(Access)
RecordGroup(Access)
RecordGroupView(Access)
RowCountMode(Access / Assign)
RowHeight(Access / Assign)
RowHeightMax(Access / Assign)
RowMode(Access / Assign)
SelectedBackground(Access / Assign)
SelectionCellCount(Access)
SelectedForeground(Access / Assign)
SelectionMode(Access / Assign)
SelectionRowCount(Access)
SelectorArea(Access)
SelectorColorCondition(Access)
SelectorView(Access / Assign)
SelectorWidth(Access / Assign)
Server(Access)
ServerType(Access / Assign)
TabKeyMode(Access / Assign)
Title(Access / Assign)
TitleArea(Access / Assign)
TitleHeight(Access / Assign)
TitleView(Access / Assign)
ToolTipMode(Access / Assign)
Used(Access)
VerticalScrollbarMode(Access / Assign)
ViewLogicAs(Access / Assign)
VisibleColumnCount(Access)
VisibleRecCount(Access)
VisibleRecordGroupHeaderCount(Access)
VisibleRowCount(Access)
Wallpaper(Access / Assign)
WallpaperView(Access / Assign)
WordBreakInMemo(Access / Assign)

Methods

AddColumn()

Append()

AutoRefresh()

Clear()

CloseColumn()

Delete()

Edit()

EditCancel()

EditClose()

EditCreate()

EditUndo()

EnableCaptionClick()

EnableCaptionSortMarker()

EnableCellGroupMove()

EnableCellGroupResize()

EnableColumnMove()

EnableColumnResize()

EnableContextMenu()

EnableDragSelection()

EnableInactiveSelection()

EnableRowHeightVariable()

EnableRowResize()

EnableSelector()

EnableSkipEoF()

EnableThemePart()

ExistColorConditions()

ExistEditConditions()

ExistFontConditions()

ExistGridConditions()

ExistRecordGroupHeaders()

ExistRecordGroups()

ExistRecords()

ExistRowsWithVariableHeight()

ExistRowsWithVariableHeight()

ExistSelectConditions()

Font()

FormatColumns()

GetAutoWidthColumn()

GetColumn()

GetColumnNo()

GetContextMenu()

GetDefaultFont()

GetFormatFromColumns()

GetInfo()

GetInfoData()

GetInfoHeight()

GetInfoView()

GetOpenColumn()

GetOpenColumnNo()

GetPropertyFromDataCache()

GoBottom()

GoTo()

GoTop()

Handle()

InDrag()

InEdit()

Init()

IsActive()

IsCaptionClickable()

IsCaptionSortMarker()

IsCellGroupMovable()

IsColumnMovable()

IsColumnResizable()

IsContextMenuEnabled()

IsDragSelectionEnabled()

IsInactiveSelectionEnabled()

IsRowHeightVariable()

IsRowResizable()

IsSelectorEnabled()

IsSkipEoFEnabled()

IsThemePartEnabled()

MoveColumn()

OpenColumn()

PropertyDelete()

PropertyExist()

PropertyGet()

PropertyPut()

Recalculate()

Recall()

RecordGroupUpdate()

Redraw()

Refresh()

RemoveColumn()

RemoveColumnAll()

ResetNotification()

ResizeColumn()

ResizeColumnAuto()

SelectionFirstColumn()

SelectionFirstRow()

SelectionNextColumn()

SelectionNextRow()

SelectionRemove()

SelectionSet()

SetContextMenu()

SetCurrentColumn()

SetCurrentRow()

SetDeleted()

SetFirstColumn()

SetInfo()

SetInfoData()

SetInfoHeight()

SetInfoView()

SetLastColumn()

SetRowHeight()

SetSelectorBackground()

SetSelectorForeground()

Skip()

SkipToCell()

SuspendNotification()

Use()

Internal Methods

AdjustAutoWidthColumn()

AdjustCaptionHeight()

AdjustColumnBands()

AdjustFooterHeight()

AdjustRecordGroupWidth()

AdjustTitleHeight()

CalculateRowHeight()

CalculateWidthOfColumnArea()

Drag()

Draw()

DrawBackground()

DrawCaption()

DrawCell()

DrawCellGroup()

DrawCellGroupItem()

DrawData()

DrawFooter()

DrawInfo()

DrawRecordGroup()

DrawRow()

DrawSelector()

DrawSelectorState()

DrawTitle()

DrawValue()

EditEventHandler()

EditRecalculate()

EventHandler()

GetCaptionFrameFromPoint()

GetCaptionFromPoint()

GetCaptionRect()

GetCellAreaRect()

GetCellFocusRect()

GetCellFromPoint()

GetCellRect()

GetColorSpec()

GetColumnAlignment()

GetColumnAlphaBlendRatio()

GetColumnBackground()

GetColumnBandNo()

GetColumnContextMenu()

GetColumnEditMode()

GetColumnFont()

GetColumnForeground()

GetColumnFrameToMouse()

GetColumnFromPoint()

GetColumnGrid()

GetColumnHighlightStyle()

GetColumnOptions()

GetColumnRect()

GetColumnViewValueAs()

GetCountOfVisibleRows()

GetEditRect()

GetEditSpec()

GetFirstVisibleColumn()

GetFirstVisibleRow()

GetFontSpec()

GetFooterFromPoint()

GetFooterRect()

GetGridSpec()

GetInfoAlignment()

GetInfoAlphaBlendRatio()

GetInfoBackground()

GetInfoFont()

GetInfoForeground()

GetInfoGrid()

GetInfoRect()

GetLastRec()

GetLastVisibleColumn()

GetLastVisibleRow()

GetNewEditableColumn()

GetNewSelectableColumn()

GetRecordGroupInfoAlignment()

GetRecordGroupInfoAlphaBlendRatio()

GetRecordGroupInfoBackground()

GetRecordGroupInfoFont()

GetRecordGroupInfoForeground()

GetRecordGroupInfoGrid()

GetRecordGroupInfoOptions()

GetRecordGroupItemAlignment()

GetRecordGroupItemOptions()

GetRecordGroupItemRect()

GetRowCount()

GetRowFrameToMouse()

GetRowHeight()

GetRowNo()

GetRowRect()

GetSelectorBackground()

GetSelectorColorSpec()

GetSelectorForeground()

GetSelectorRect()

GetSelectorStateBackground()

GetSelectorStateForeground()

GetTitleAlignment()

GetTitleAlphaBlendRatio()

GetTitleBackground()

GetTitleFont()

GetTitleForeground()

GetTitleGrid()

GetTitleOptions()

GetValueBackground()

GetValueForeground()

GetValueRect()

GetVisiblePosFromEoF()

GetVisiblePosFromPoint()

GetVisiblePosFromRecNo()

GetVisiblePosFromRecordGroupItem()

GetVisiblePosFromRowNo()

InitDC()

InitRecordScope()

IsCellAreaVisible()

IsCellEditable()

IsCellSelectable()

IsCellSelected()

IsCellVisible()

IsColumnVisible()

IsHorizontalScrollbarVisible()

IsInfoVisible()

IsMultipleColorInGrid()

IsRecordGroupItemVisible()

IsRecordVisible()

IsRowSelected()

IsRowVisible()

IsVerticalScrollbarVisible()

MoveCellGroup()

Notify()

NotifyAppend()

NotifyDelete()

NotifyFieldChange()

NotifyGoBottom()

NotifyGoTop()

NotifyRecordChange()

RecordGroupItemChangeState()

RecordRelease()

RecordRestore()

RecordSave()

ResizeCellGroup()

ResizeRow()

SelectionRestore()

SelectionSave()

UpdateHorizontalScrollValues()

UpdateVerticalScrollValues()

Callback Methods

CaptionClick()

CaptionDoubleClick()

CellClick()

CellDoubleClick()

CellDragDrop()

CellDragSelect()

CellEdit()

CellGroupMove()

CellGroupResize()

CellSelect()

CellToolTip()

ColumnMove()

ColumnResize()

ContextMenuShow()

FocusChange()

FooterClick()

FooterDoubleClick()

HorizontalScroll()

KeyChar()

RecordAppend()

RecordGroupClick()

RecordGroupDoubleClick()

RecordGroupItemClose()

RecordGroupItemOpen()

RowResize()

RowSelect()

SelectorClick()

SelectorDoubleClick()

VerticalScroll()

Inherits From

CustomControl

Inherited By

<No descendants>

Description

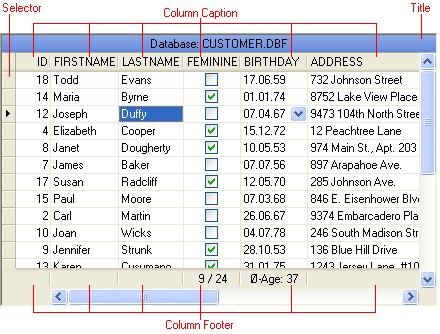

A browser is a table that consists of one or more data columns. The individual column values are determined with expressions or are fields in servers.



bBrowser



Columns and rows can be navigated with both the keyboard and the mouse.



Key

Description

KeyHome

Moves to the first data column.

KeyEnd

Moves to the last data column.

KeyArrowLeft

Moves to the previous data column.

KeyArrowRight

Moves to the next data column.

KeyArrowUp

Moves to the previous record.

KeyArrowDown

Moves to the next record.

KeyPageUp

Moves to the previous page.

KeyPageDown

Moves to the next page.

Ctrl + KeyPageUp

Moves to the first record.

Ctrl + KeyPageDown

Moves to the last record.

KeyReturn

Activate the input in the current cell, if this is permitted.

Tab

Set the focus to the next control in the window.

Shift + Tab

Set the focus to the previous control in the window.

KeyF5

Refreshed the visible data.

Strg + '+'

Open a record group.

Strg + '-'

Close a record group.



bBrowser can be linked with servers of the class DBServer, or with every other server (e.g. the bArrayServer) that implements the following methods, access and assigns with same calling conventions and behavior as class DBServer.



Method

Access

Assign

FieldGet()

BoF

RecNo

FieldHyperLabel()

DBStruct


FieldInfo()

Deleted


FieldPos()

EoF


FieldPut()

LastRec


FieldSpec()

ReadOnly


FieldSym()

RecCount


GoBottom()

RecNo


GoTo()

Used


GoTop()



IndexKey() [optional 1]



IndexOrd() [optional 1]



Notify()



OrderInfo() [optional 1]



OrderKeyCount() [optional 1]



OrderKeyNo() [optional 1]



RegisterClient()



ResetNotification()



Skip()



SuspendNotification()



UnregisterClient()





[1] The methods are part of a group and are optional. As soon as one
of these methods is implemented, all others must be implemented too.

Visual Styles (XP-Designs)

bBrowser supports the Visual Styles of MS-Windows. A prerequisite is that the application has Visual Styles enabled and is supported by the operating system. Visual Styles are only supported by Windows XP and newer operating systems.



Visual Styles are supported by the bBrowser in the following areas:

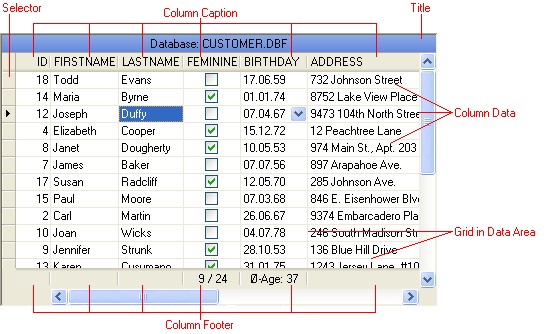

bBrowser_ThemePart



The areas in which the Visual Styles are supported.



All these areas must be defined with a Grid with the Style BGRID_AUTO. These are defined automatically when creating a bBrowser object. The table below lists the access with which the Grid of the areas can be accessed:



Area

Access

Title

bBrowser:TitleView:Grid

Column Caption

bBrowser:CaptionView:Grid

Column Footer

bBrowser:FooterView:Grid

Selector

bBrowser:SelectorView:Grid

Grid in Data Area

bBrowser:DataView:Grid



If the operating system or the application does not support Visual Styles then the areas in which the grid style BGRID_AUTO is defined are represented with an alternative grid. The table below lists the alternative grid styles:



Area

Alternative Grid-Style

Title

BGRID_CONVEX

Column Caption

BGRID_CONVEX

Column Footer

BGRID_CONVEX

Selector

BGRID_CONVEX

Grid in Data Area

BGRID_OUTLINE



The support of Visual Styles can be enabled or disabled for an area with the method bBrowser:EnableThemePart(). When creating a bBrowser object, Visual Styles are enabled for all areas as long as the application and the operating system supports the Visual Styles. Otherwise, Visual Styles are disabled for all areas.



If the new representation of the bBrowser with full Visual Style support is not desired, then the old representation of the bBrowser 2 can be reconfigured with the following code fragment:



oBrowser:EnableThemePart(BVSTP_TITLE, FALSE)

oBrowser:EnableThemePart(BVSTP_INFO, FALSE)

oBrowser:EnableThemePart(BVSTP_SELECTOR, FALSE)

oBrowser:EnableThemePart(BVSTP_CAPTION, FALSE)

oBrowser:EnableThemePart(BVSTP_FOOTER, FALSE)

oBrowser:EnableThemePart(BVSTP_GRID, FALSE)

oBrowser:EnableThemePart(BVSTP_RECORDGROUP, FALSE)



The code fragment must implemented after creating a bBrowser control. Further, the alpha blend ratio for colors must be adjusted. See the next paragraph for this.

bBrowser and color alpha blending (AlphaBlendRatio)

The bBrowser supports color alpha blending. This means that one color overlapped another color. The overlapped color is seen through the other one. The top color is transparent. The higher the ratio of the overlapping, the lower is the transparency. The lower the ratio, the more it shows through the other. The alpha blend ratio can be defined with the access bBrowser:AlphaBlendRatio. bBrowser supports color alpha blending for the following areas:

Title

Column Caption

Column Data

Column Footer

Selector

Record Group

Info Value



In addition to bBrowser:AlphaBlendRatio a special alpha blend ratio can be defined for each of the areas above in the related bViewStyle object. For this the ratio must be defined in the access bViewStyleStyle:AlphaBlendRatio. The following table lists the accesses for the bViewStyle objects of the areas:



Area

Access

Title

bBrowser:TitleView

Column Caption

bBrowser:CaptionView

Column Data

bBrowser:DataView

Column Footer

bBrowser:FooterView

Selector

bBrowser:SelectorView

Record Group

bBrowser:RecordGroupView

Info Value

bBrowser:InfoView



To disable color alpha blending, the value BABR_NONE must be assigned to the access bBrowser:AlphaBlendRatio. As default the value BABR_NORMAL is defined in this access. To disable the color alpha blending only in one of the different areas of the bBrowser, the value BABR_NONE must be assigned to the access bViewStyle:AlphaBlendRatio. For the different areas in the bBrowser the values below are defined as default:



Area

Access

Title

BABR_AUTO

Column Caption

BABR_AUTO

Column Data

BABR_AUTO

Column Footer

BABR_AUTO

Selector

BABR_AUTO

Record Group

BABR_AUTO

Info Value

BABR_AUTO



For the representation of color conditions the alpha blend ratio is used from the access bBrowser:DataView. To represent color conditions without alpha blending the value BABR_NONE must be assigned to the access.



Important note!
The alpha blend ratio is supported only for Windows 2000 and newer operating systems.

OwnerDrawValues

bBrowser offers the possibility of showing data values of type Object or Array as column values. Since bBrowser cannot draw these directly, it looks for a method on its owner called DrawValue(). If this method exists, bBrowser calls this for drawing the object. An event of the class bDrawValueEvent will be passed to the method as a parameter.

See also bSample - OwnerDrawValues



Compound Values: bCompoundValue

The bBrowser supports compound column values of the class bCompoundValue. These values can consist of as many individual values as required.

See also bSample - bCompoundValues




Page url: http://www.YOURSERVER.com/index.html?bbrowser.htm
